Form Fill Seal (FFS) technology is widely used in food, pharmaceutical, chemical, and consumer goods packaging due to its high efficiency and automation level. Among FFS systems, Vertical Form Fill Seal (VFFS) and Horizontal Form Fill Seal (HFFS) machines are the two main configurations. Although both perform forming, filling, and sealing in one continuous process, their structural design, product suitability, and operational characteristics differ significantly.
This article provides a professional and detailed comparison of VFFS and HFFS machines, helping manufacturers choose the most appropriate solution for their specific packaging needs.
Basic Working Principle of FFS Machines
Both VFFS and HFFS machines start with roll film that is shaped into a package, filled with product, and sealed. The key difference lies in the orientation of the film path and the direction of product filling, which directly impacts machine layout, filling method, and application scope.

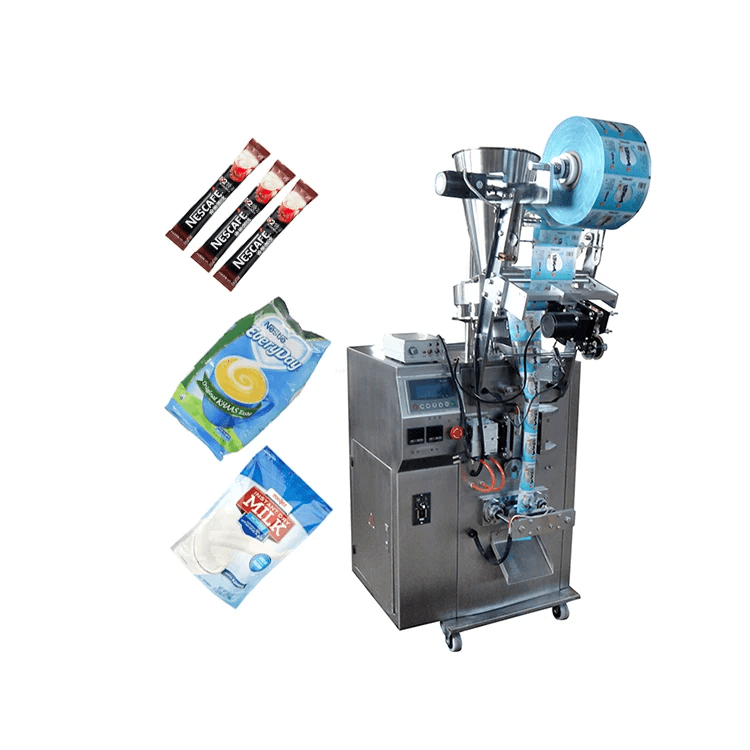

What Is a VFFS Machine?
A Vertical Form Fill Seal machine forms the package in a vertical orientation. The packaging film is pulled downward over a forming tube, creating a vertical bag. The product is then filled from the top into the formed package, followed by vertical and horizontal sealing.
VFFS machines rely heavily on gravity-assisted filling, making them highly efficient for free-flowing products. Their vertical design allows compact installation and high-speed operation.
What Is an HFFS Machine?
A Horizontal Form Fill Seal machine operates with the package formed and filled in a horizontal direction. The film is drawn horizontally, shaped into pockets or cavities, filled with product, and sealed while lying flat.
HFFS machines offer greater control over product placement and are better suited for products that require precise positioning or gentle handling. They are often used for more complex package formats.
Structural and Mechanical Differences
VFFS machines have a simpler mechanical structure with fewer moving parts. The vertical layout reduces floor space requirements and simplifies product feeding systems.
HFFS machines are mechanically more complex, incorporating product loading stations, indexing conveyors, and multiple sealing stages. This complexity allows greater flexibility but increases equipment size and cost.
Product Suitability and Application Scope
VFFS machines are ideal for:
- Granules, powders, and free-flowing solids
- Liquids and pastes using liquid filling systems
- Snack foods, coffee, sugar, rice, and pharmaceutical powders
HFFS machines are better suited for:
- Solid items with fixed shapes
- Fragile or sticky products
- Medical devices, syringes, sachets with inserts, and unit-dose pharmaceuticals
The ability of HFFS machines to control product orientation makes them suitable for high-value or delicate products.
Packaging Style and Design Flexibility
VFFS machines typically produce:
- Pillow bags
- Gusseted bags
- Quad-seal and block-bottom bags
HFFS machines support:
- Sachets with precise geometry
- Stick packs
- Blister-style and flat pouches
- Multi-compartment or shaped packages
HFFS systems offer greater flexibility for complex packaging designs and customized formats.
Filling Accuracy and Product Protection
In VFFS systems, filling accuracy depends largely on the dosing system and product flow consistency. Gravity filling is efficient but may be less suitable for products sensitive to drop height or impact.
HFFS machines provide better control over filling action and product handling. This results in improved protection for fragile products and more consistent placement within the package.
Production Speed and Efficiency
VFFS machines are generally capable of higher output rates due to continuous vertical motion and simplified mechanics. They are well suited for high-volume, cost-sensitive production.
HFFS machines usually operate at lower speeds but provide higher precision and flexibility. They are commonly chosen when packaging quality and product integrity are prioritized over maximum throughput.
Footprint and Facility Requirements
VFFS machines have a compact footprint and are easier to integrate into existing production lines. Their vertical design minimizes floor space usage.
HFFS machines require more floor space due to horizontal film movement and additional stations. However, they offer better accessibility for product loading and inspection.
Cost Considerations
VFFS machines typically have lower initial investment and maintenance costs. Their simpler design results in reduced downtime and easier operation.
HFFS machines involve higher capital costs due to mechanical complexity and customization options. They are often justified by the need for advanced packaging formats or delicate product handling.
Summary
VFFS and HFFS machines serve different packaging needs despite sharing the same fundamental Form Fill Seal concept. VFFS machines excel in high-speed, cost-effective packaging of free-flowing products with compact footprints. HFFS machines provide superior flexibility, product handling control, and packaging design options for complex or sensitive products.
The choice between VFFS and HFFS should be based on product characteristics, packaging format requirements, production volume, and facility constraints.
