1. Why Specialized Spout Pouch Filling Machines Are Essential
Whether it’s jam, juice, shampoo, skincare products, or even liquid medicines, spout pouches have become increasingly popular. They are lightweight, resealable, visually attractive, and more eco-friendly than many traditional bottles and jars, making them highly popular.
However, spout pouch packaging requires technical precision. The process involves attaching a spout, ensuring safety, hygiene, and preventing leaks. Investing in a dedicated spout pouch filling and sealing machine is crucial to avoid common problems such as inaccurate filling volumes, air bubbles, or weak seals.
2. How Are Spout Pouches Filled and Sealed
In this process, the pouch used is a stand-up pouch without a spout, with only a large top opening. The spout is a separate component attached after filling.
Suitable for oxygen-sensitive products such as juice or premium sauces, high-speed filling of purified water, as well as dry foods like nuts or pet food, this method ensures efficiency and product quality.
The process flow is as follows:
- Pouch Loading – Load a pouch with an open top.
- Filling – Fill through the top opening using multiple nozzles for higher efficiency.
- Vacuuming or Nitrogen Flushing – Removes air, enhances product stability, and extends shelf life.
- Spout Installation – A robotic arm picks and accurately places the spout on the pouch.
- Sealing – Heat-seal the spout base and the pouch top simultaneously using upper and lower heated molds.
- Capping – Final closure with threaded or snap-on caps.
The advantages of this method include high efficiency for filling and vacuum/gas flushing due to the large opening, suitability for modified atmosphere packaging to extend shelf life, and the ability to install the spout and seal the pouch in one compact operation.
3. Understanding Spout Pouch Structure
Spout pouches usually consist of four main parts:
- Laminated Film Body: PET/AL/PE or PET/NY/PE layers provide strength, heat resistance, and oxygen/moisture barrier.
- Spout (Nozzle): PP or PE injection-molded part, attached via ultrasonic or heat sealing.
- Cap: Threaded or snap-on for resealing.
- Bottom Gusset: Allows the pouch to stand upright during filling and storage.
Each layer has different melting points and flexibility. Precision in temperature and pressure is essential to prevent wrinkling, delamination, or leakage.
4. Common Issues and Solutions in Spout Pouch Filling
- Air in the pouch: Remove air via vacuuming or nitrogen flushing before filling.
- Spout leakage: Caused by uneven temperature or misalignment; servo-controlled spout positioning ensures perfect sealing.
- Dripping or overflow: Use anti-drip nozzles or adjustable closing delay.
- Cap misalignment: Servo-controlled torque ensures consistent capping.
- Film wrinkling or deformation: Independent heating zones allow precise temperature control.
- Hygiene risks: LTPM machines include CIP/SIP automatic cleaning and sterilization.
These solutions minimize downtime, reduce product loss, and increase overall production efficiency.

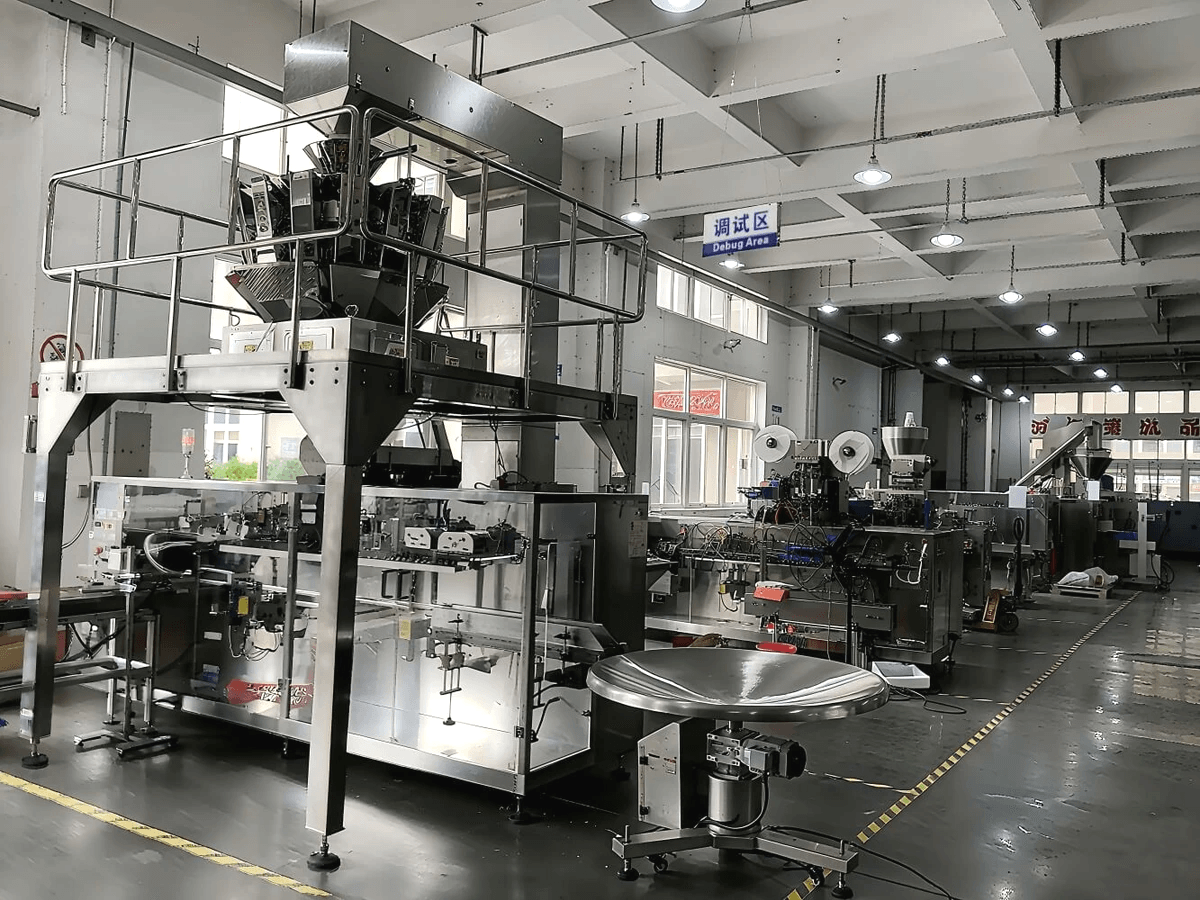

5. Selecting the Right Spout Pouch Filling Machine
Choosing the right spout pouch filling and sealing machine depends on production scale, product properties, and pouch design.
- Linear Spout Pouch Filling Machine: Flexible for various pouch sizes and small-batch production. Ideal for cosmetics, nutraceuticals, or pharmaceuticals.
- Fully Integrated Systems: Combine filling, capping, labeling, and coding with centralized PLC control for full automation and traceability.
Key customizable parameters include spout diameter (8–30 mm), filling volume (5–5000 g), and cap types (screw caps, snap caps, welded caps). Optional features include nitrogen flushing, hot filling, or cleanroom integration based on application needs.
6. Industry Applications
Spout pouches are widely used due to their convenience and adaptability:
- Food & Beverage: Puree, sauces, condiments, honey, yogurt, concentrated juice
- Pharmaceuticals: Oral suspensions, liquid supplements, vitamins, medicinal gels
- Cosmetics: Shampoo, conditioner, lotions, hand sanitizers, beauty creams
- Chemicals: Lubricants, detergents, adhesives, automotive fluids
Machines can be customized with specialized spouts, filling nozzles, or de-foaming systems to handle different viscosities and chemical compositions.
7. Conclusion
Filling and sealing spout pouches is both an art and a science, requiring coordination between filling accuracy, cap alignment, and sealing temperature. A professional spout pouch filling and sealing machine ensures smooth and reliable production.
By investing in advanced automation, manufacturers can achieve consistent product quality, leak-proof and hygienic packaging, faster production with fewer errors, longer shelf life, and enhanced brand image.
LTPM CHINA provides reliable, high-performance spout pouch filling and sealing solutions. With proper maintenance, LTPM machines can operate efficiently for 5–10 years or more. Each machine comes with a five-year warranty and lifetime technical support.
We design and manufacture custom spout pouch filling machines with options such as aseptic filling, nitrogen flushing, and full automation. Contact us to explore our turnkey pouch packaging lines built to European quality standards with global after-sales support.
